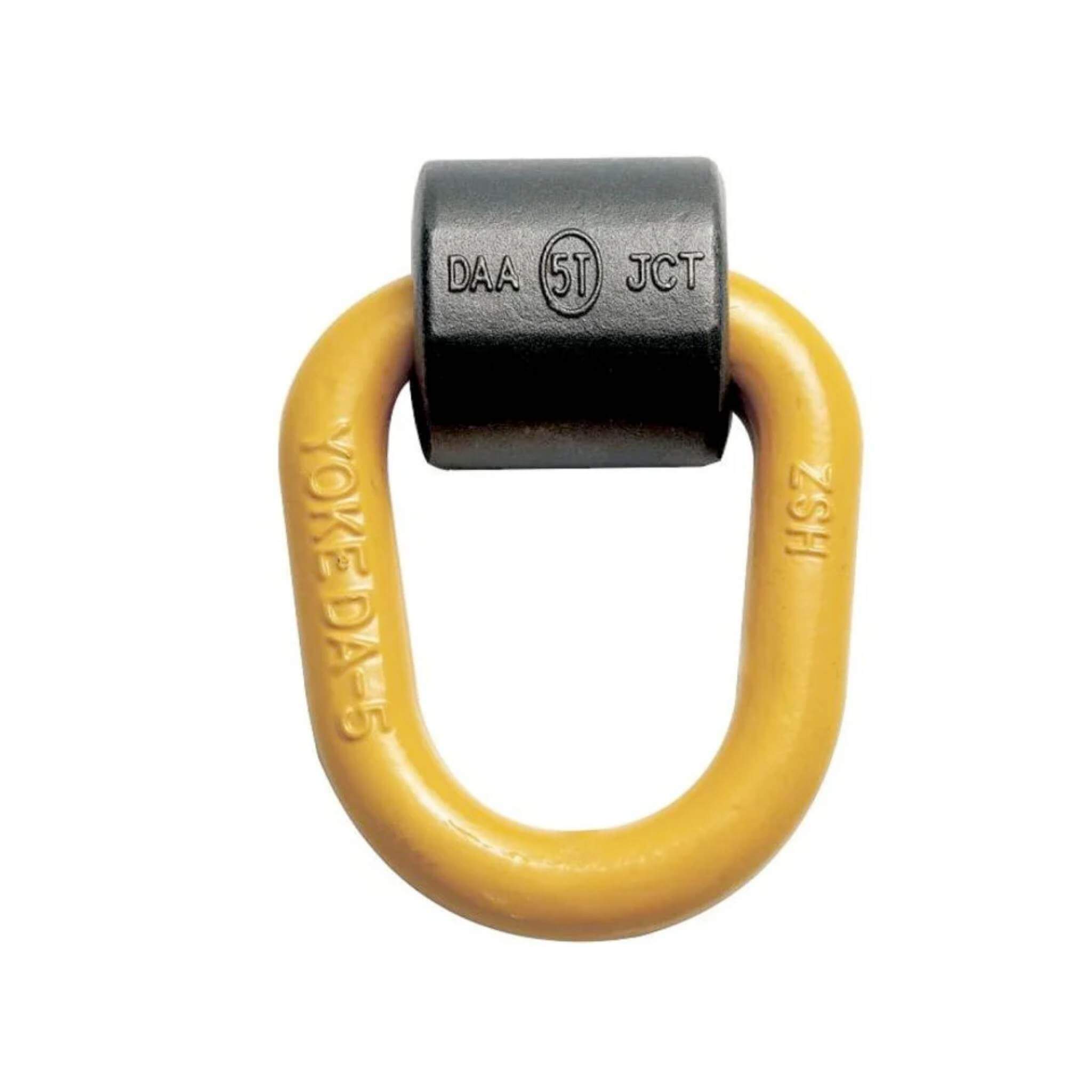

YOKE 8-057 Grade 80 Weld-On Lifting Points

YOKE 8-057 Grade 80 Weld-On Lifting Points offer a reliable solution for permanent lifting and lashing attachment points. Designed for integration into fabricated steel structures and equipment, these lifting points are available in multiple capacities to suit a wide range of industrial applications. Trusted across construction, transport, manufacturing, and mining sectors, the 8-057 series combines strength, durability, and practical load handling performance in one versatile lifting component.

Features:

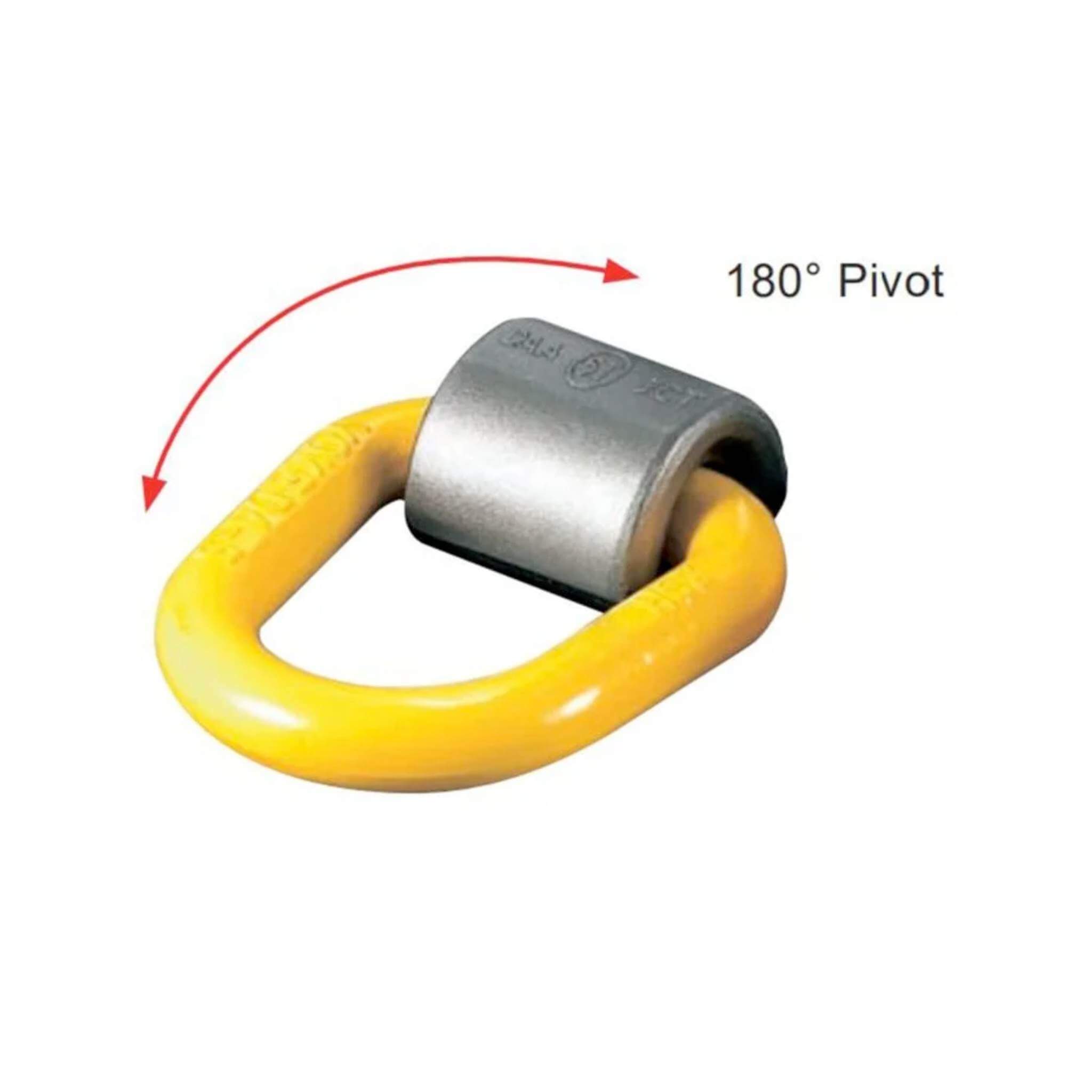

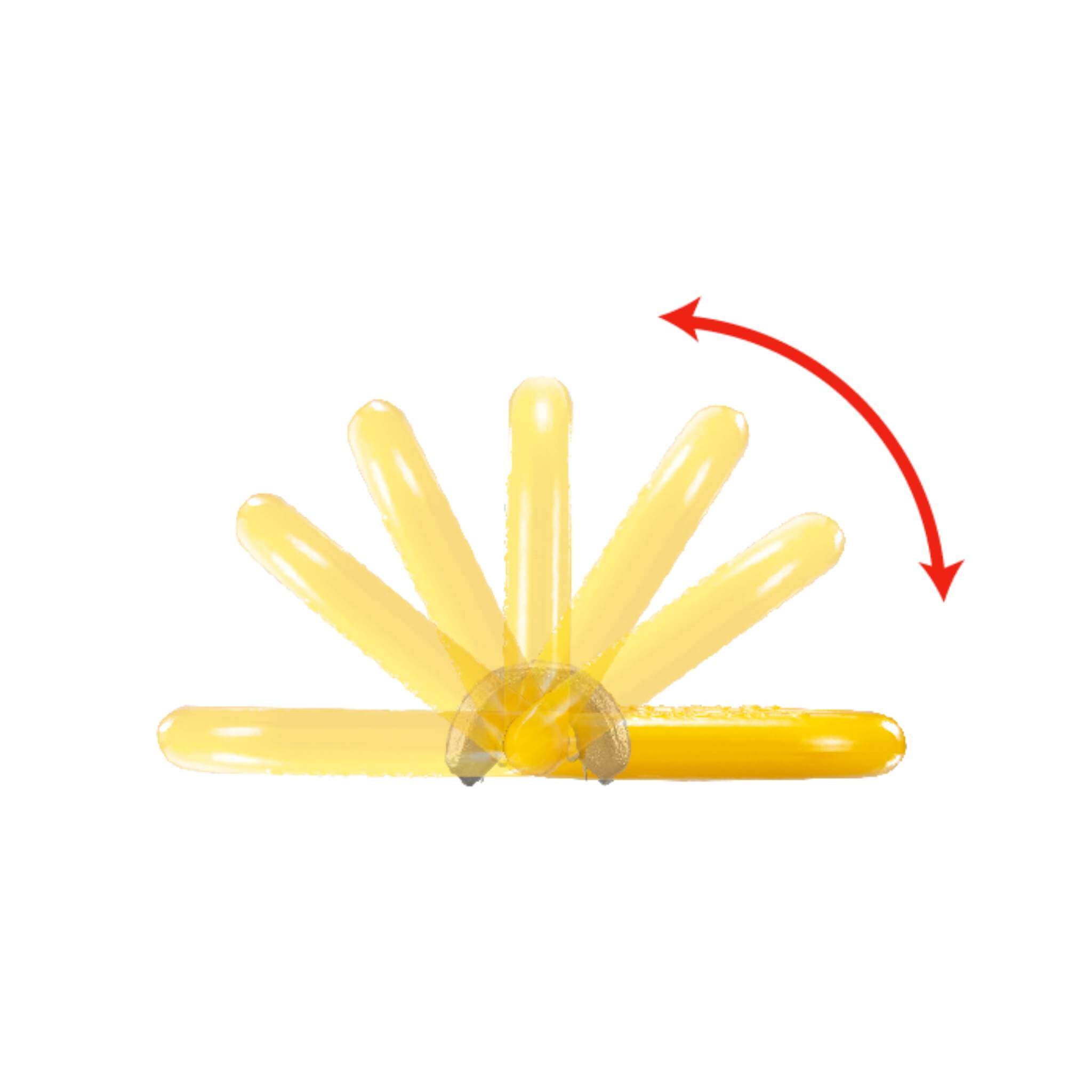

• Pivots through 180°.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN 1677-1.
• Proof tested to 2.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• WLL forged onto each product for quick and easy identification.

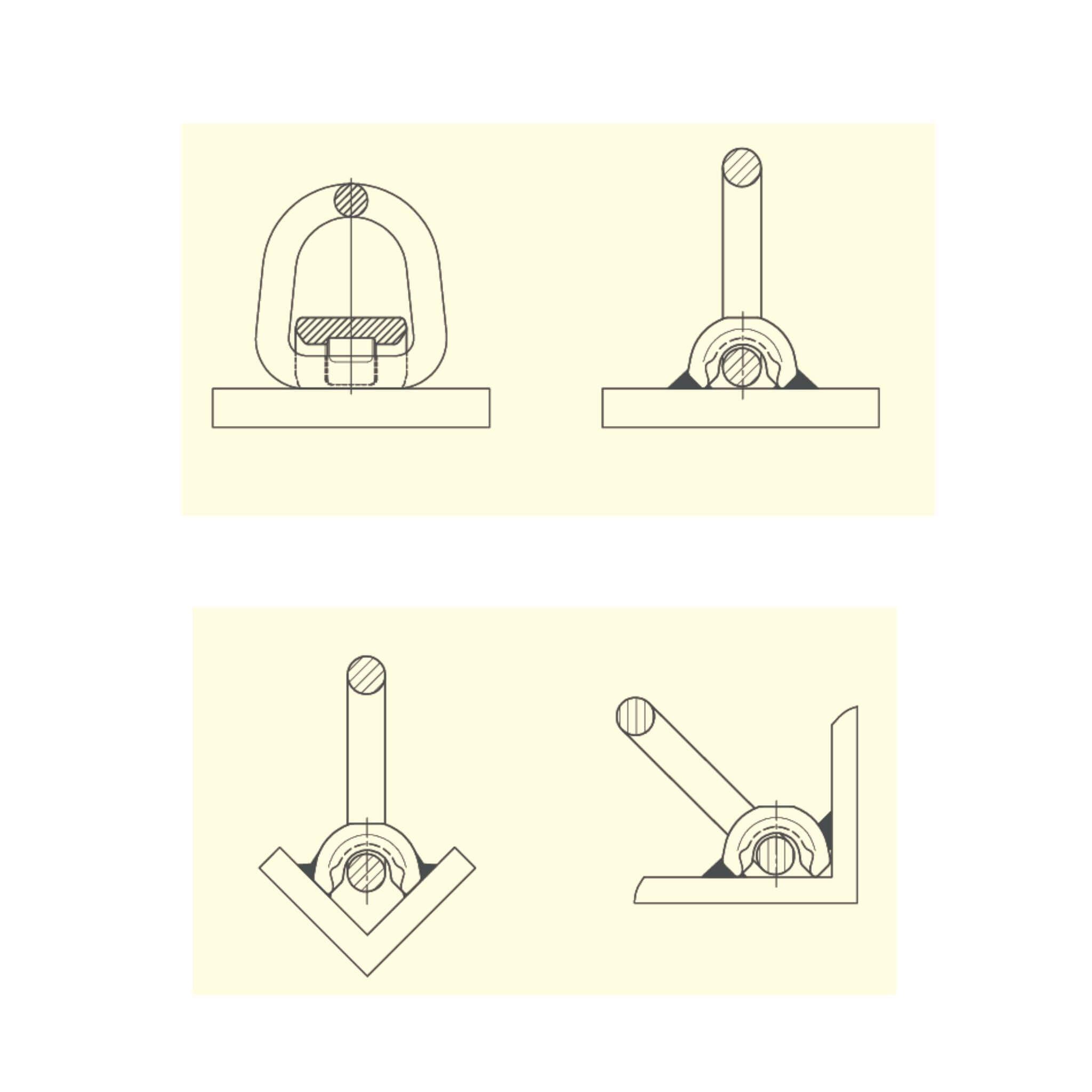

• Lugs designed to assist the welding process.
• A protected spring keeps the load ring in a required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibrations.
• Never apply load except in the same direction with the pivot direction.
