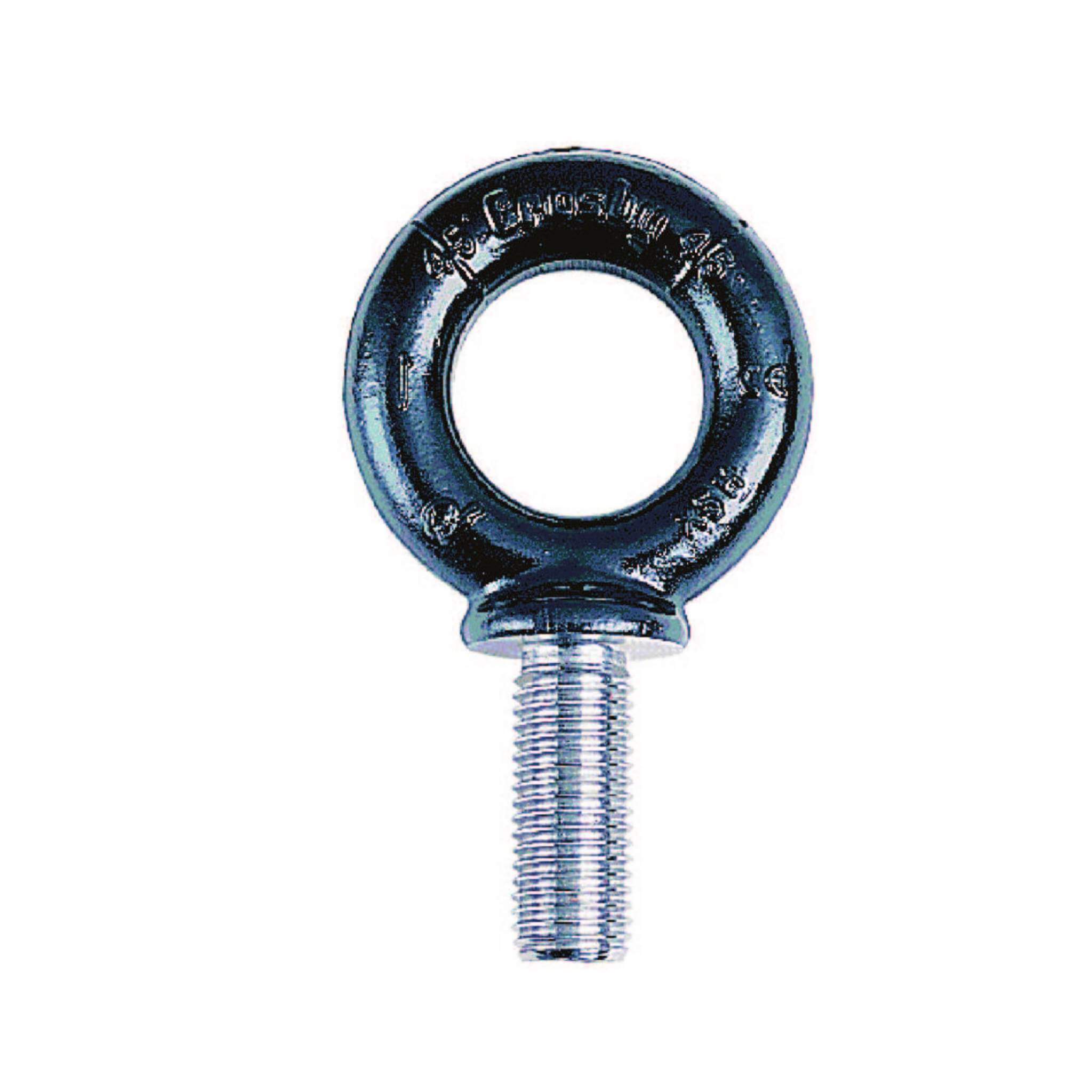

Crosby S-279 UNC Shoulder Machinery Eye Bolts

The Crosby S-279 UNC Shoulder Machinery Eye Bolt range is a trusted choice for creating secure lifting points on machinery, fabricated equipment, motors, pumps, gearboxes, and structural components. Designed with a forged shoulder pattern and UNC thread, these eye bolts provide a reliable lifting attachment for a wide range of industrial lifting and material handling applications.

Manufactured to Crosby's renowned quality standards, S-279 Machinery Eye Bolts deliver dependable performance for lifting, positioning, and securing valuable equipment. Whether you're replacing existing lifting points or specifying components for new projects, this range offers the strength and reliability required for demanding industrial applications.

Features:

• Forged Steel - Quenched & Tempered.
• Working Load Limits shown are for in-line pull. For angle loading, see Warnings & Applications.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Recommended for in-line pull.
• S-279 threaded UNC.

• Supplied without nuts
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
