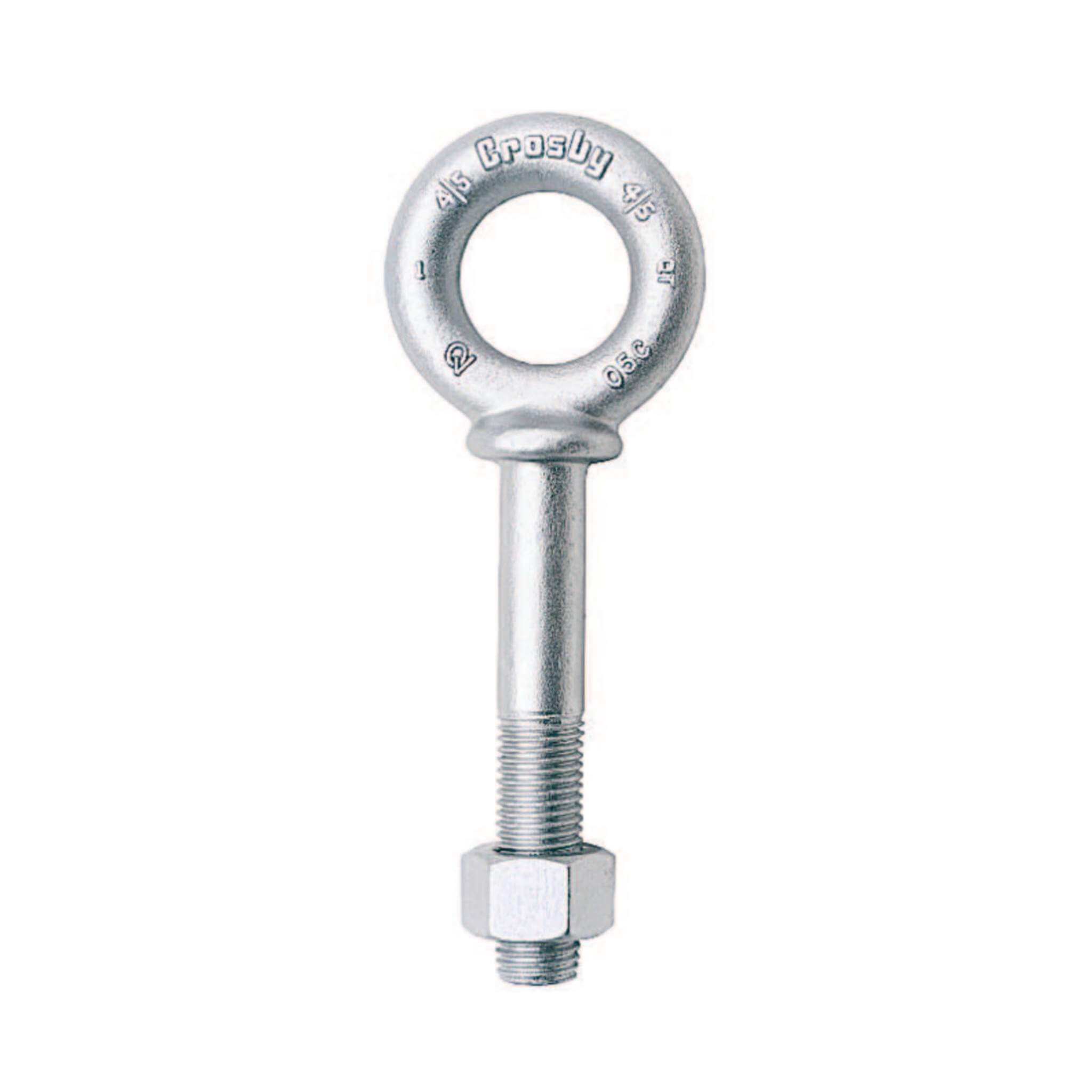

Crosby G-277 Shoulder Nut Eye Bolts

The Crosby G-277 Shoulder Nut Eye Bolt range is designed to provide a strong and versatile lifting attachment point for a wide variety of industrial applications. Featuring an integrated shoulder design for improved load distribution, these eye bolts are suitable for both vertical lifting and certain angular loading conditions when installed correctly.

Available in multiple thread sizes and working load capacities, the G-277 series is widely used in manufacturing, construction, mining, transport, maintenance, and engineering environments. Their durable forged construction makes them a dependable choice for lifting equipment, machinery, fabricated components, and structural assemblies where a secure lifting connection is required.

Features:

• Forged steel, Quenched & Tempered.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Working Load Limits shown are for in-line pull. For angle loading, see applications and warning section.
• Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these bolts meet other critical performance requirements, including fatigue life, impact properties, and material traceability not addressed by ASME B30.26.
• All bolts hot-dip galvanized after threading (UNC).
• Furnished with standard hot-dip galvanized, heavy hex nuts.
