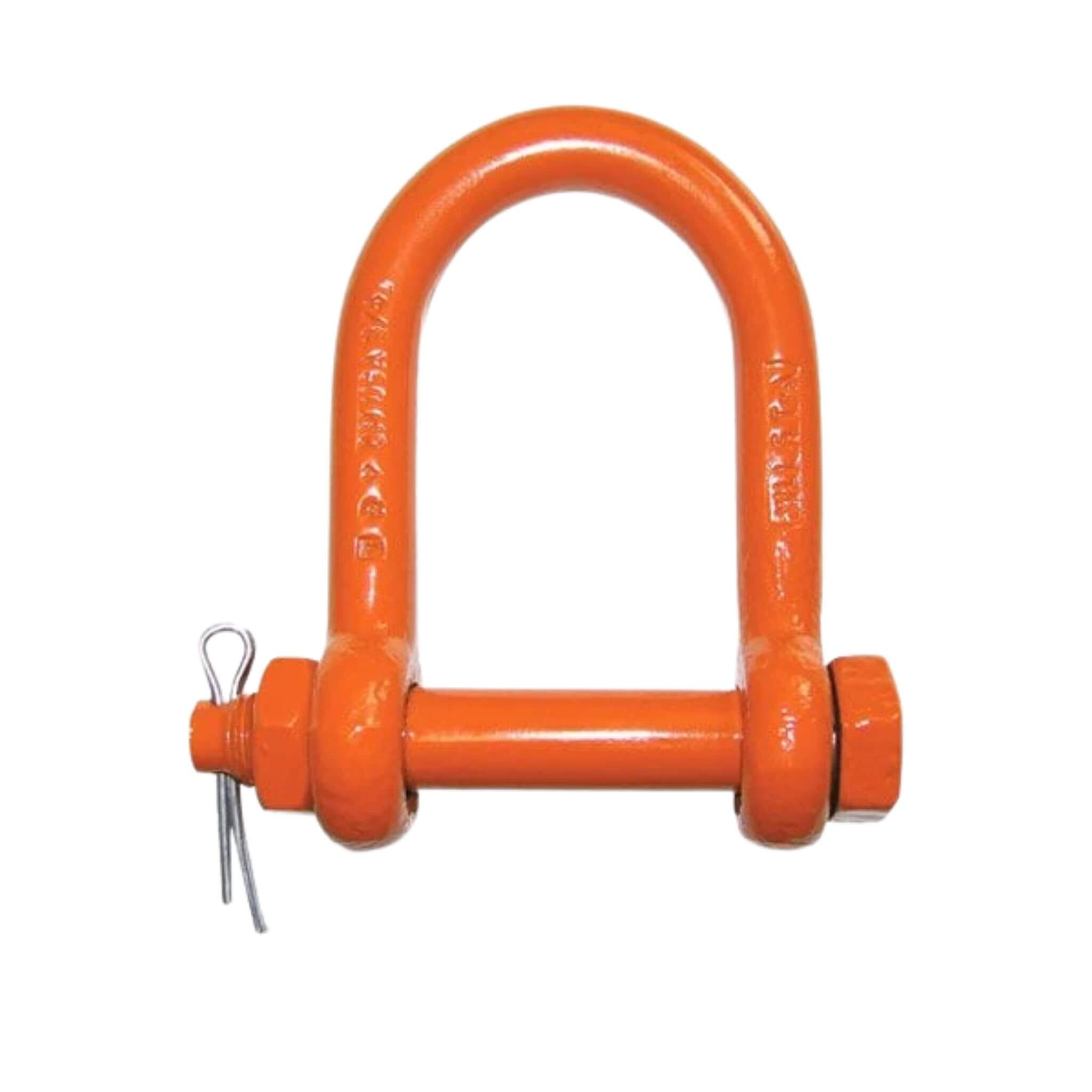

An orange painted heavy-duty steel shackle with a bolt, nut, and spring clip, shown on a plain white background. CM Heavy-Duty Long-Reach Bolt-Type Anchor Shackle

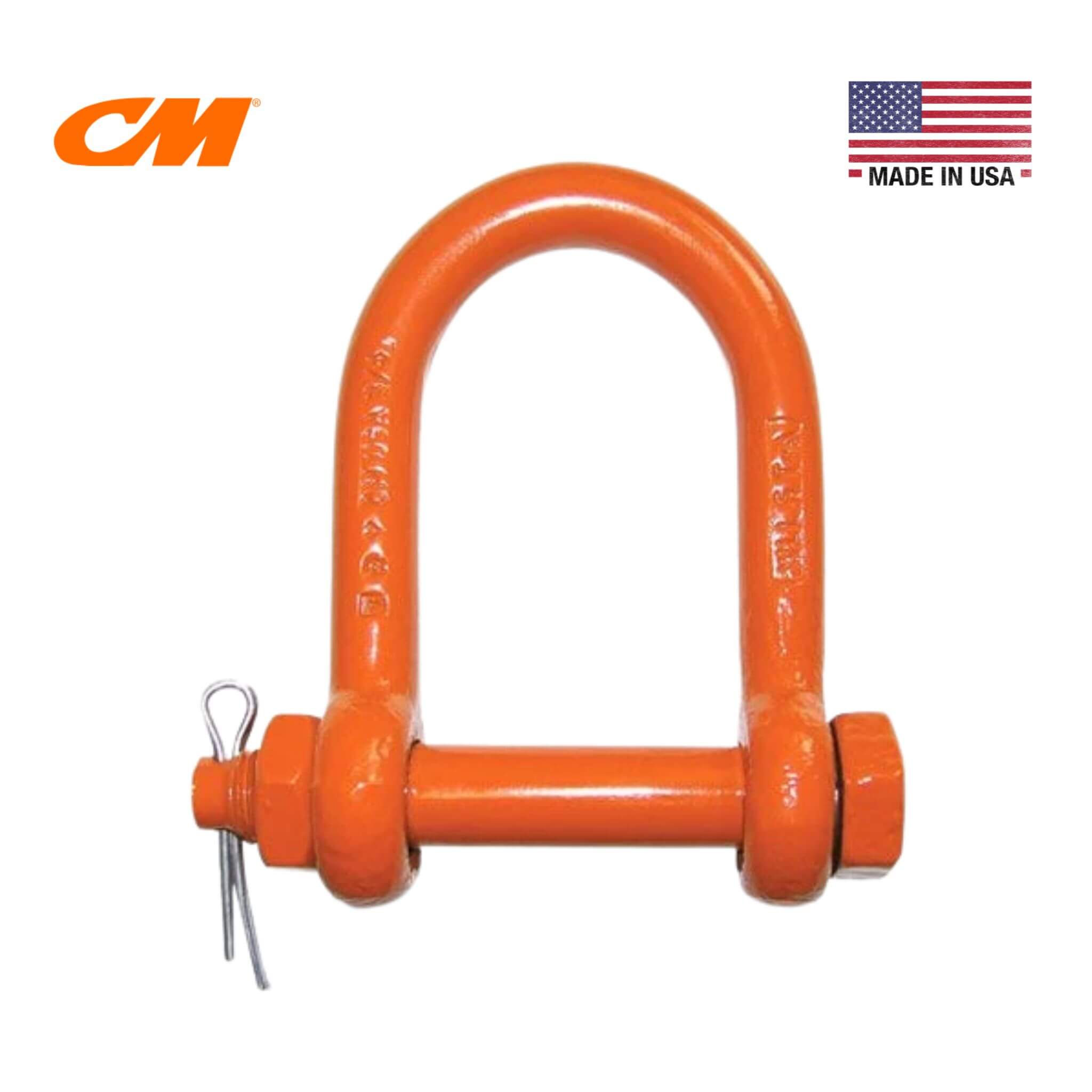

An orange painted heavy-duty steel shackle with a bolt, nut, and spring clip, shown on a plain white background. CM Heavy-Duty Long-Reach Bolt-Type Anchor Shackle. Made in USA
An orange painted heavy-duty steel shackle with a bolt, nut, and spring clip, shown on a plain white background. CM Heavy-Duty Long-Reach Bolt-Type Anchor Shackle
An orange painted heavy-duty steel shackle with a bolt, nut, and spring clip, shown on a plain white background. CM Heavy-Duty Long-Reach Bolt-Type Anchor Shackle. Made in USA

CM Heavy-Duty Long-Reach Bolt-Type Anchor Shackle

Price
$142.00
Taxes and shipping calculated at checkout
Size & Capacity: 5/8 in (3.5 Ton WLL)
SKU: CM-M9151P

Frequently Bought Together

Free US Continental Shipping

Usually ships within 1-3 days

Item is not returnable due to safety factors

Made in USA

Designed for long-term installations, semi-permanent connections, and critical overhead lifts, the Columbus McKinnon (CM) Heavy-Duty Long-Reach Bolt-Type Anchor Shackle combines an extended reach profile with the reliability of a bolt, nut, and cotter pin assembly. The bolt-type mechanism prevents the pin from unthreading during rotation, high-vibration exposure, or long-duration load suspension.

Key Features & Technical Specifications:

  • Maximum Security Pin System: Secured with a heavy hex nut and safety cotter pin to eliminate accidental pin backing-out under vibration.
  • Extended Profile Design: Provides crucial reach for deep pick points, wide structural beams, and specialized lifting beams.
  • American Forged Quality: Made in the USA from heat-treated alloy steel for maximum tensile strength and durability.
  • 5:1 Design Factor: High design safety margin meeting ASME B30.26 overhead rigging standards.
  • CM Safety Orange Finish: High-visibility powder-coated body with permanent WLL and size markings.

Note: Always inspect cotter pins prior to each lift. Long reach shackles are designed for straight inline loading only.
