The MGD Master Link is an all in one component that features a master link, a connecting link to the chain, and chain shortening hook to adjust the chain. This design provides less weight than standard adjustable chain slings making it easier to handle.
Material: Grade 100 Alloy Steel

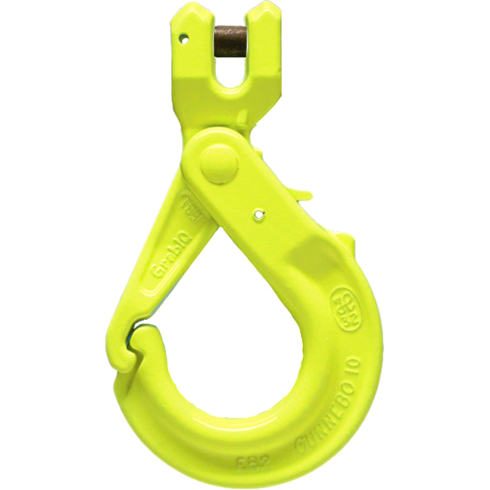

Configuration: GrabiQ MGD 2-Leg Chain with all Gunnebo components -Clevis self locking hooks.
Vertical Working Load Limits
5/16" Chain Diameter: 9,900 @60º, 8,100 @45º 5,700 @30º LBS
3/8" Chain Diameter: 15,200 @60º, 12,400 @45º, 8,800 @30º LBS
1/2" Chain Diameter: 26,000 @60º, 21,200 @45º, 15,000 @30º LBS
5/8" Chain Diameter: 39,100 @60º, 32,000 @45º, 22,600 @30º LBS
Custom Lengths Available Upon Request.
Warning: Chain Slings should be used by professionals. Read and understand all specifications and instructions before using Alloy Steel Chain Slings. Failure to read and understand those instructions may cause death or serious injury. Chain Slings should never be used beyond their certified load ratings. Avoid Shock loads.
Ships within 4-5 days
Item cannot be returned due to safety concerns
Made in Sweden
