Wire Rope Slings

Wire Rope Slings and Cable Assemblies for Lifting, Towing, and Hoisting.







High quality wire rope steel lifting slings fabricated with flemish eye splice and swaged sleeve. High resistance to fatigue, abrasion-resistance and heat resistance make them ideal in a variety of environments.



Wire Rope Slings are used for material handling, crane, towing, and lifting applications. Wire Rope is made out of multiple steel wires that form individual strands and are wrapped around a core. They provide durability, flexibility, and the ability to handle bending stresses. There are many configurations and each provides different benefits.



Our Wire rope slings are made with 6x25 EIPS IWRC rope.   Fabricated from extra improved plow steel (EIPS) and independent wire rope core (IWRC) which provides support for the outer strands and has a superior resistance to crushing and heat.



Each sling is made to order in the U.S.A. with either imported or US materials and assembled by professional riggers.



STANDARD EYE EYE
WIRE ROPE SLINGS

THIMBLED EYE EYE
WIRE ROPE SLINGS

MULTIPLE LEG
WIRE ROPE SLINGS
COMING SOON



Eye & Eye Single Leg Wire Rope Slings, are the most popular standard wire rope slings. Made from a single length of wire rope with loop eyes on each end.



Thimbled Eye & Eye Single Leg Wire Ripe Slings, are similar to standard ones but have thimbled eye terminations on each end. Using thimbles will protect the connection points and against loop deformation. Thimbled eyes are usually used when there is a frequent amount of connect and disconnect with other rigging components.

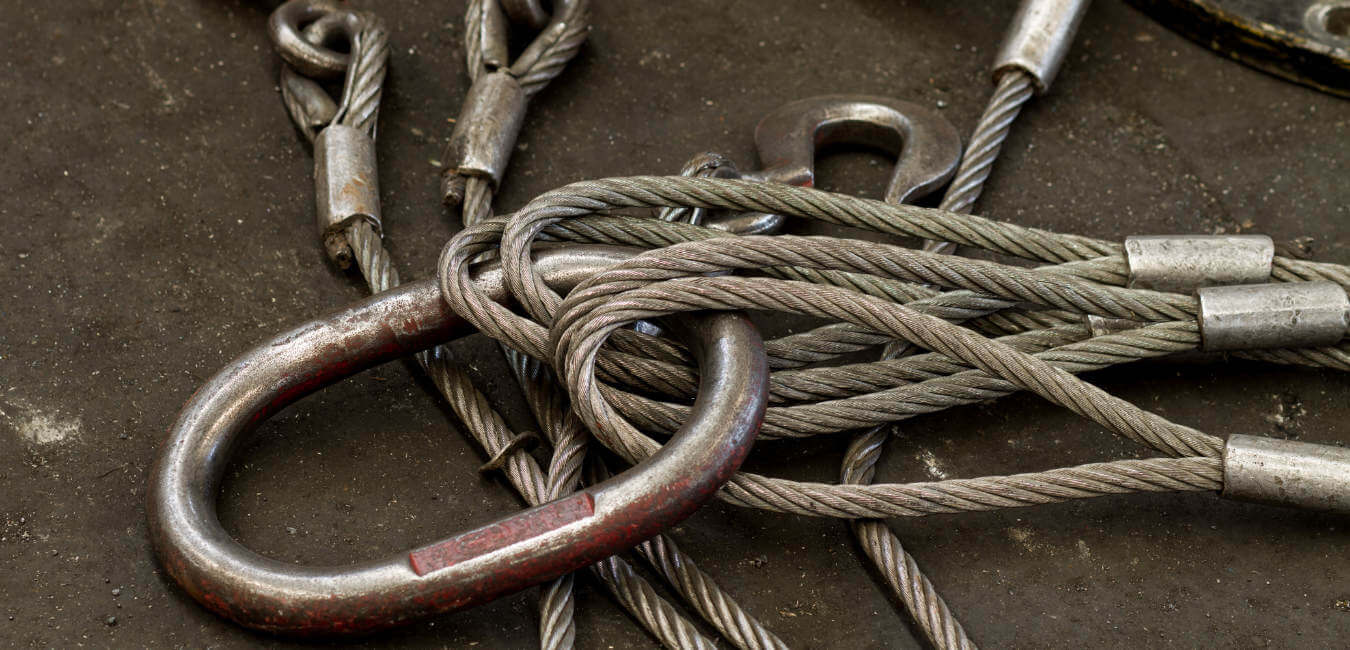

2 Leg Wire Rope Slings, is also known as double leg wire rope slings, are made of 2 equal wire rope lengths attached to a oblong master link at the top. The multiple legs allow you to position your connection to different points which offers stability and helps prevent your load from tipping and rocking. The ends of the wire rope are usually thimbled eyes with rigging hardware on each end. Depending on your needs hardware can be shackles, Sling hooks, self locking hooks, or no hooks at all.



Wire Rope Slings are also available in other multiple leg cable assemblies such as 3 Leg or 4 leg wire rope assemblies
